2320144 | Phoenix Contact

DC converter, 30-60 VDC, 120 W, 1 output, 18 to 29.5 VDC, 91.5 % efficiency, 2320144

Order No.: 64P3395
EAN: 4046356482257
MPN:
2320144
QUINT-PS/48DC/24DC/ 5
Series: QUINT
2320144 Phoenix Contact DC/DC Converters
Image may differ
Unit Price (€ / pc.)
297.50 € *
Standard delivery time from the manufacturer is: 5 Weeks
Total Price:
297.50 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
297.50 €

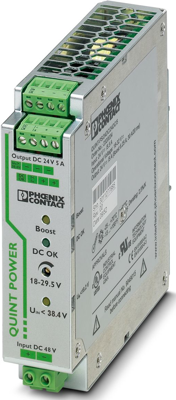

DC/DC converter, 2320144, Phoenix Contact

Primary-switched QUINT DC/DC converter for DIN rail mounting with SFB (Selective Fuse Breaking) Technology, input: 48 V DC, output: 24 V DC/5 A.

Features

  • Preventive function monitoring indicates critical operating states before errors occur
  • Constant voltage: output voltage regenerated even at the end of long cables
  • Support conversion to various voltage levels
  • Electrical isolation: for setting up independent supply systems
Technical specifications
Output current 5 A
Power 120 W
Height 130 mm
Width 32 mm
Input voltage AC 30-60 VDC
Number of outputs 1
Design DIN rail
Output voltage DC 18 to 29.5 VDC
efficiency 91.5 %
Logistics
Customs tariff number 85366930
Country of origin PL
Compliance
Date of RoHS guidelines 3/31/15
SVHC free No
RoHS conform Yes
