2320128 | Phoenix Contact

DC converter, 18-32 VDC, 240 W, 1 output, 30 to 56 VDC, 92.5 % efficiency, 2320128

Order No.: 64P3404
EAN: 4046356481908
MPN:
2320128
QUINT-PS/24DC/48DC/ 5
Series: QUINT
2320128 Phoenix Contact DC/DC Converters
Image may differ
Unit Price (€ / pc.)
405.79 € *
Available in 10 days: 578 pcs. - if ordered today
Total Price:
405.79 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
405.79 €

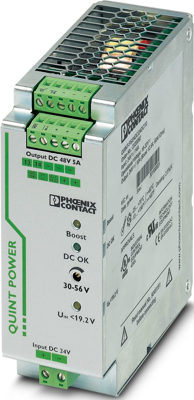

DC/DC converter, 2320128, Phoenix Contact

Primary-switched QUINT DC/DC converter for DIN rail mounting with SFB (Selective Fuse Breaking) Technology, input: 24 V DC, output: 48 V DC/5 A.

Features

  • Preventive function monitoring indicates critical operating states before errors occur
  • Constant voltage: output voltage regenerated even at the end of long cables
  • Support conversion to various voltage levels
  • Electrical isolation: for setting up independent supply systems
Technical specifications
Output voltage DC 30 to 56 VDC
Output current 5 A
Width 48 mm
Height 130 mm
Power 240 W
Design DIN rail
Number of outputs 1
efficiency 92.5 %
Input voltage AC 18-32 VDC
Logistics
Country of origin PL
Customs tariff number 85366930
Compliance
Date of RoHS guidelines 3/31/15
SVHC free No
RoHS conform Yes
