2320092 | Phoenix Contact

DC converter, 18-32 VDC, 240 W, 1 output, 18 to 29.5 VDC, 92 % efficiency, 2320092

Order No.: 64P3400
EAN: 4046356481885
MPN:
2320092
QUINT-PS/24DC/24DC/10
Series: QUINT
2320092 Phoenix Contact DC/DC Converters
Image may differ
Unit Price (€ / pc.)
361.76 € *
Standard delivery time from the manufacturer is: 6 Weeks
Total Price:
361.76 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
361.76 €

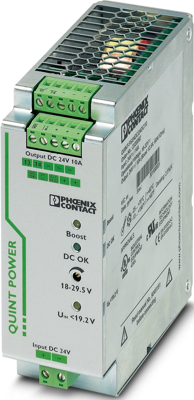

DC/DC converter, 2320092, Phoenix Contact

Primary-switched QUINT DC/DC converter for DIN rail mounting with SFB (Selective Fuse Breaking) Technology, input: 24 V DC, output: 24 V DC/10 A.

Features

  • Preventive function monitoring indicates critical operating states before errors occur
  • Constant voltage: output voltage regenerated even at the end of long cables
  • Support conversion to various voltage levels
  • Electrical isolation: for setting up independent supply systems
Technical specifications
Design DIN rail
efficiency 92 %
Input voltage AC 18-32 VDC
Number of outputs 1
Output current 10 A
Output voltage DC 18 to 29.5 VDC
Width 48 mm
Power 240 W
Height 130 mm
Logistics
Customs tariff number 85366930
Country of origin PL
Compliance
Date of RoHS guidelines 3/31/15
SVHC free No
RoHS conform Yes
