1416130 | Phoenix Contact

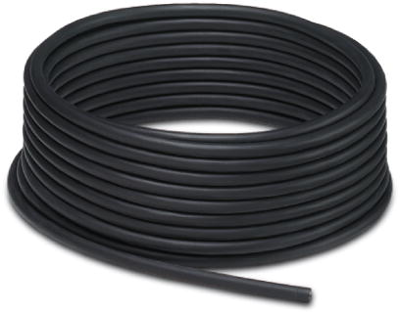

PVC system bus cable, profibus, 2-wire, 0.75 mm², AWG 18, black, 1416130
Unit Price (€ / pc.)
403.0292 € *
Standard delivery time from the manufacturer is: 3 Weeks
Bus system cable, 1416130, Phoenix Contact
Bus system cable, PROFIBUS PA (31.25 kbps), FOUNDATION Fieldbus (31.25 kbps), 2-position, Shielded, Cable length: 100 m.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 18 | |
| Colour | black | |
| Core insulation material | PE | |
| Halogen free | Yes | |
| Cable cross-section | 0.75 mm² | |
| Temperature range (unmoved) | -30 °C to 75 °C | |
| Number of cores | 2 | |
| Outer diameter | 7.8 mm | |
| Material | PVC | |
| Version | system bus cable | |
| Bussystem | profibus | |
| Cable material | copper, tin-plated | |
| Shielding | shielded |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444995 |
| Country of origin | NL |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
