1689983 | Phoenix Contact
D-Sub socket, 5 pole, equipped, straight, screw connection, 1689983
Unit Price (€ / pc.)
6.6878 € *
Available in 10 days: 47 pcs. - if ordered today
Total Price:
6.69 € *
Price list
Quantity
Price per unit*
1 pcs.
6.6878 €
10 pcs.
6.1523 €
50 pcs.
5.5930 €
100 pcs.
5.0337 €
*incl. VAT plus shipping costs
Subject to prior sale

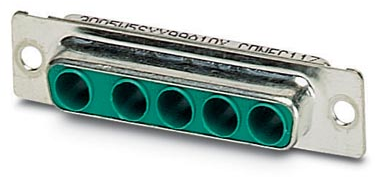

D-Sub socket, 1689983, Phoenix Contact
D-SUB contact carrier, shell size 3, accommodation for five combined contacts, type of contact socket, straight, fixing with a 3 mm hole, for panel mounting frame and sleeve housing VS-25.
Features
- Shielded
- Contact material: Copper alloy
- Housing material: Steel yellow chromated
- Flammability class according to UL 94: V0
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Pin number | 5 pole | |
| Contact connection | screw connection | |
| Assembly | straight | |
| Version | socket header | |
| Performance level | 1 | |
| Additional parts | equipped | |
| Type of locking | through hole |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
