1689967 | Phoenix Contact

D-Sub socket, 25 pole, standard, equipped, straight, crimp connection, 1689967

Order No.: 62P5283
EAN: 4017918914363
MPN:
1689967
VS-25-BU-DSUB-CD-B
Series: VS-..
1689967 Phoenix Contact D-Sub Connectors Image 1
1689967 Phoenix Contact D-Sub Connectors Image 2
Image may differ
Unit Price (€ / pc.)
5.3312 € *
Available: 48 pcs.
Available in 5 Days: 50 pcs. - if ordered today
Total Price:
5.33 € *
Price list
Quantity
Price per unit*
1 pcs.
5.3312 €
10 pcs.
4.9147 €
50 pcs.
4.4625 €
100 pcs.
4.0222 €
*incl. VAT plus shipping costs
Subject to prior sale

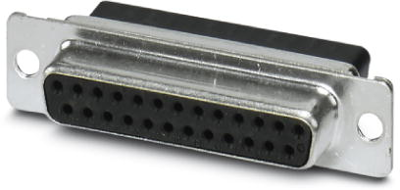

D-Sub socket, 1689967, Phoenix Contact

D-SUB contact carrier, shell size 3, for 25 signal contacts, type of contact socket, for crimp contacts, straight, fixing with a 3 mm hole, for panel mounting frame and sleeve housing VS-25.

Features

  • Shielded
  • Housing material: Steel, tin-plated
  • Overvoltage category: III
  • Pollution degree: 2
  • Flammability class according to UL 94: V0
Technical specifications
Filter Property Value
Contact connection crimp connection
Assembly straight
Additional parts equipped
Version socket header
Performance level 1
Pin number 25 pole
Type of locking through hole
Pole image standard
Logistics
Property Value
Country of origin DE
Customs tariff number 85366990
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
