1689925 | Phoenix Contact
D-Sub socket, 25 pole, standard, equipped, angled, screw connection, 1689925
Unit Price (€ / pc.)
37.3065 € *
Available in 10 days: 40 pcs. - if ordered today

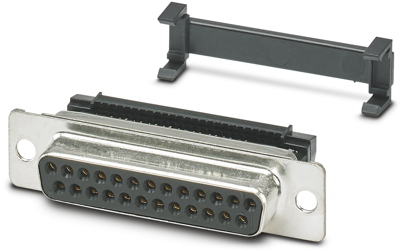

D-Sub socket, 1689925, Phoenix Contact

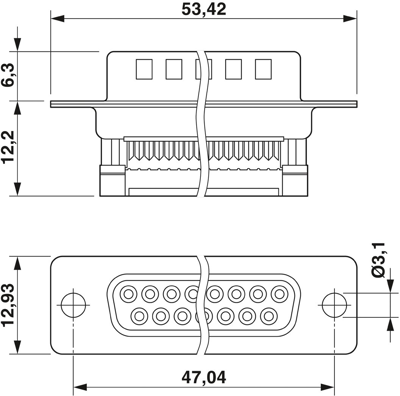

D-SUB contact insert, shell size 3, with 25 signal contacts, type of contact socket, flat-ribbon cable connection, angled, fixing with a 3 mm hole, for panel mounting frame VS-25.
Features
- Shielded
- Contact material: Copper alloy
- Overvoltage category: III
- Pollution degree: 2
- Flammability class according to UL 94: V0
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Pin number | 25 pole | |
| Contact connection | screw connection | |
| Assembly | angled | |
| Version | socket header | |
| Performance level | 3 | |
| Pole image | standard | |
| Additional parts | equipped | |
| Type of locking | through hole |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
