1689899 | Phoenix Contact
D-Sub plug, 25 pole, standard, equipped, straight, solder cup, 1689899
Unit Price (€ / pc.)
13.0543 € *
Available in 5 Days: 26 pcs. - if ordered today

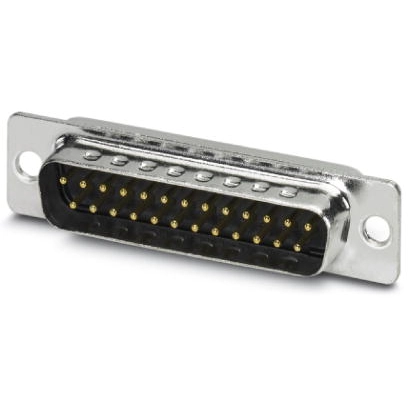

D-Sub plug, 1689899, Phoenix Contact
D-SUB contact insert, shell size 3, with 25 signal contacts, type of contact pin, with solder cup, straight, fixing with a 3 mm hole, for panel mounting frame and sleeve housing VS-25.
Features
- Unshielded
- Contact material: Copper alloy
- Overvoltage category: III
- Pollution degree: 2
- Flammability class according to UL 94: V0
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Pin number | 25 pole | |
| Type of locking | through hole | |
| Additional parts | equipped | |
| Assembly | straight | |
| Contact connection | solder cup | |
| Version | pin header | |
| Pole image | standard |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| SVHC free | No |
| RoHS conform | Yes |
