1689873 | Phoenix Contact
D-Sub plug, 25 pole, standard, equipped, angled, PCB connection, 1689873
Unit Price (€ / pc.)
22.4910 € *
Available in 10 days: 134 pcs. - if ordered today
Total Price:
22.49 € *
Price list
Quantity
Price per unit*
1 pcs.
22.4910 €
10 pcs.
20.6941 €
50 pcs.
19.0400 €
100 pcs.
17.3264 €
*incl. VAT plus shipping costs
Subject to prior sale

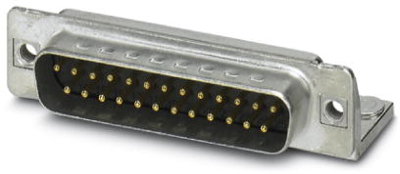

D-Sub plug, 1689873, Phoenix Contact
D-SUB contact insert, shell size 3, with 25 signal contacts, type of contact pin, for PCB mounting, angled, fixing with M3 thread and solder pins, for panel mounting frame VS-25.
Features
- Unshielded
- Contact material: Copper alloy
- Overvoltage category: III
- Pollution degree: 2
- Flammability class according to UL 94: V0
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Pin number | 25 pole | |
| Contact connection | PCB connection | |
| Assembly | angled | |
| Version | pin header | |
| Pole image | standard | |
| Additional parts | equipped |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Substance description | Lead |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
