1689776 | Phoenix Contact
D-Sub socket, 25 pole, standard, straight, screw connection, 1689776
Unit Price (€ / pc.)
39.1986 € *
Available in 5 Days: 185 pcs. - if ordered today

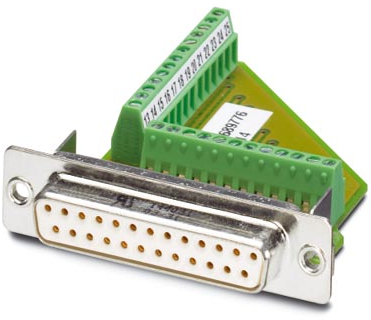

D-Sub socket, 1689776, Phoenix Contact
D-SUB contact insert, shell size 3, with 25 signal contacts, female type of contact, screw connection, straight, for panel mounting frame and sleeve housing with IP67 protection.
Features
- Shielded
- Contact material: Copper alloy
- Overvoltage category: II
- Pollution degree: 2
- Flammability class according to UL 94: V0
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Contact connection | screw connection | |
| Performance level | 2 | |
| Assembly | straight | |
| Pole image | standard | |
| Pin number | 25 pole | |
| Version | socket header |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
