1689307 | Phoenix Contact
D-Sub socket, 9 pole, standard, equipped, straight, screw connection, 1689307
Unit Price (€ / pc.)
95.6998 € *
Standard delivery time from the manufacturer is: 1 Week

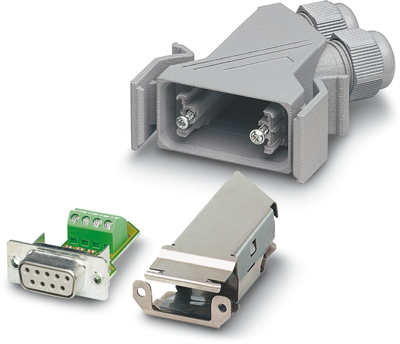

D-Sub socket, 1689307, Phoenix Contact
D-SUB connector, Protection class: IP67, No. of poles: 9, Material: PA, Connection type: Screw connection, cross section: AWG 26- 20, cable outlet: angled, with integrated terminating resistor, housing size: 1.
Features
- EMC-Protected
- Overvoltage category: II
- Contact material: Copper alloy
- Flammability class according to UL 94: V0
- Pollution degree: 2
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Pole image | standard | |
| Assembly | straight | |
| Additional parts | equipped | |
| Version | socket header | |
| Contact connection | screw connection | |
| Cable Outlet | angled | |
| Pin number | 9 pole |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
