1688942 | Phoenix Contact

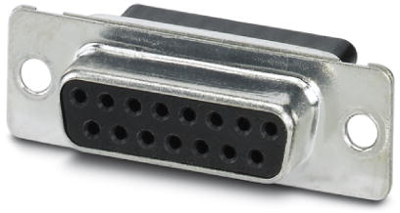

D-Sub socket, 15 pole, standard, equipped, straight, crimp connection, 1688942

Order No.: 62P5234
EAN: 4017918823092
MPN:
1688942
VS-15-BU-DSUB-CD-OG
Series: VS-..
1688942 Phoenix Contact D-Sub Connectors
Image may differ
Unit Price (€ / pc.)
4.3554 € *
Available: 8 pcs.
Available in 5 Days: 620 pcs. - if ordered today
Total Price:
4.36 € *
Price list
Quantity
Price per unit*
1 pcs.
4.3554 €
10 pcs.
4.0103 €
50 pcs.
3.6533 €
100 pcs.
3.2844 €
*incl. VAT plus shipping costs
Subject to prior sale

D-Sub socket, 1688942, Phoenix Contact

D-SUB contact carrier, shell size 2, for 15 signal contacts, type of contact socket, for crimp contacts, straight, fixing with a 3 mm hole, for panel mounting frame and sleeve housing VS-15.

Features

  • Shielded
  • Housing material: Steel, tin-plated
  • Overvoltage category: III
  • Pollution degree: 2
  • Flammability class according to UL 94: V0
Technical specifications
Filter Property Value
Contact connection crimp connection
Performance level 1
Assembly straight
Pole image standard
Additional parts equipped
Pin number 15 pole
Version socket header
Type of locking through hole
Logistics
Property Value
Customs tariff number 85366990
Country of origin DE
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
