1688926 | Phoenix Contact

D-Sub socket, 15 pole, standard, equipped, straight, crimp connection, 1688926

Order No.: 62P5233
EAN: 4017918823078
MPN:
1688926
VS-15-BU-DSUB-CD-MG
Series: VS-..

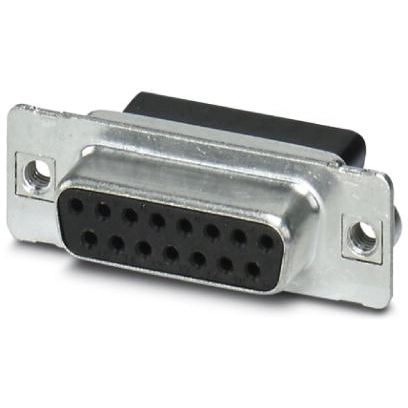

1688926 Phoenix Contact D-Sub Connectors Image 1
1688926 Phoenix Contact D-Sub Connectors Image 2
Image may differ
Unit Price (€ / pc.)
10.9599 € *
Available: 99 pcs.
Available in 10 days: 400 pcs. - if ordered today
Total Price:
10.96 € *
Price list
Quantity
Price per unit*
1 pcs.
10.9599 €
10 pcs.
10.0912 €
50 pcs.
9.1868 €
100 pcs.
8.2705 €
*incl. VAT plus shipping costs
Subject to prior sale

D-Sub socket, 1688926, Phoenix Contact

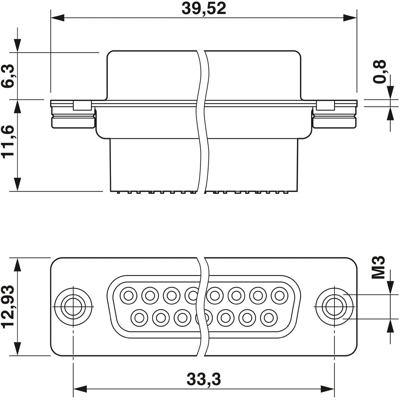

D-SUB contact carrier, shell size 2, for 15 signal contacts, type of contact socket, for crimp contacts, straight, fixing with M3 thread, for panel mounting frame VS-15.

Features

  • Shielded
  • Housing material: Steel, tin-plated
  • Overvoltage category: III
  • Pollution degree: 2
  • Flammability class according to UL 94: V0
Technical specifications
Pin number 15 pole
Performance level 1
Version socket header
Pole image standard
Additional parts equipped
Contact connection crimp connection
Assembly straight
Logistics
Customs tariff number 85366990
Country of origin DE
Compliance
Substance description Lead
SVHC free No
RoHS conform Yes
Date of RoHS guidelines 3/31/15
