1688829 | Phoenix Contact
D-Sub socket, 9 pole, standard, equipped, angled, screw connection, 1688829
Unit Price (€ / pc.)
17.0527 € *
Available in 5 Days: 229 pcs. - if ordered today
Total Price:
17.05 € *
Price list
Quantity
Price per unit*
1 pcs.
17.0527 €
10 pcs.
15.6961 €
50 pcs.
14.2800 €
100 pcs.
12.8520 €
*incl. VAT plus shipping costs
Subject to prior sale

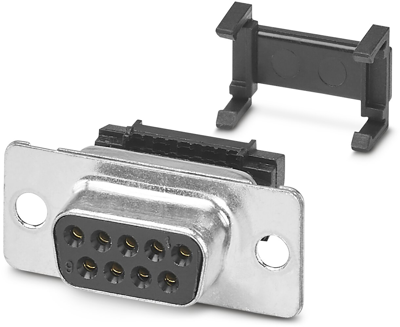

D-Sub socket, 1688829, Phoenix Contact
D-SUB contact insert, shell size 1, with 9 signal contacts, contact type female, ribbon cable connection, angled, mounting via 3 mm hole, for mounting frame VS-09.
Features
- Contact material: Copper alloy
- Housing material: Steel, tin-plated
- Flammability class according to UL 94: V0
- Overvoltage category: III
- Pollution degree: 2
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Contact connection | screw connection | |
| Performance level | 3 | |
| Assembly | angled | |
| Pole image | standard | |
| Additional parts | equipped | |
| Pin number | 9 pole | |
| Version | socket header | |
| Type of locking | through hole |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
