1688825 | Phoenix Contact
D-Sub plug, 5 pole, straight, PCB connection, 1688825
Unit Price (€ / pc.)
5.0456 € *
Standard delivery time from the manufacturer is: 5 Weeks
Total Price:
5.05 € *
Price list
Quantity
Price per unit*
1 pcs.
5.0456 €
10 pcs.
4.6529 €
50 pcs.
4.2364 €
100 pcs.
3.8080 €
*incl. VAT plus shipping costs
Subject to prior sale
D-Sub plug, 1688825, Phoenix Contact

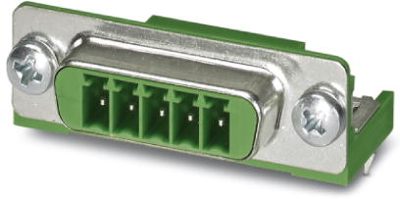

POWER-SUBCON header, for mounting side, 5-pos, shielded, green, for wall thicknesses up to 2.0 or 4.5 mm.
Features
- Contact material: Copper alloy
- Overvoltage category: III
- Pollution degree: 2
- Flammability class according to UL 94: V0
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Pin number | 5 pole | |
| Version | pin header | |
| Assembly | straight | |
| Type of locking | threaded insert 4-40 UNC | |
| Contact connection | PCB connection | |
| Attachment (rear panel) | through hole |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | PL |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
