1688418 | Phoenix Contact
D-Sub plug, 2 pole, equipped, straight, solder pin, 1688418
Unit Price (€ / pc.)
5.0813 € *
Available in 10 days: 83 pcs. - if ordered today

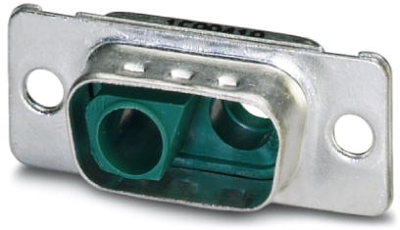

D-Sub plug, 1688418, Phoenix Contact
D-SUB contact carrier, shell size 1, receptacle for 2 combination contacts, contact type pin, straight, location by means of 3 mm hole, for mounting frame and shell housing VS-09.
Features
- Housing material: Steel yellow chromated
- Flammability class according to UL 94: V0
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Pin number | 2 pole | |
| Contact connection | solder pin | |
| Assembly | straight | |
| Version | pin header | |
| Performance level | 1 | |
| Additional parts | equipped | |
| Type of locking | through hole |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
