1688405 | Phoenix Contact
D-Sub socket, 9 pole, standard, equipped, angled, solder pin, 1688405
Unit Price (€ / pc.)
16.7076 € *
Available: 4 pcs.
Next delivery: 50 pcs. on 2025-10-13
Available in 5 Days: 2 pcs. - if ordered today
Total Price:
16.71 € *
Price list
Quantity
Price per unit*
1 pcs.
16.7076 €
10 pcs.
15.3748 €
50 pcs.
13.9825 €
100 pcs.
12.5902 €
*incl. VAT plus shipping costs
Subject to prior sale

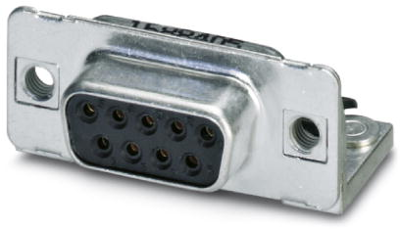

D-Sub socket, 1688405, Phoenix Contact
D-SUB contact insert, shell size 1, with 9 signal contacts, contact type female, for PCB mounting, angled, mounting by M3 thread and solder pin, for mounting frame VS-09.
Features
- Contact material: Copper alloy
- Housing material: Steel, tin-plated
- Flammability class according to UL 94: V0
- Overvoltage category: III
- Pollution degree: 2
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Pin number | 9 pole | |
| Pole image | standard | |
| Version | socket header | |
| Assembly | angled | |
| Additional parts | equipped | |
| Contact connection | solder pin |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Substance description | Lead |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
