1688379 | Phoenix Contact
D-Sub plug, 9 pole, standard, straight, screw connection, 1688379
Unit Price (€ / pc.)
20.0634 € *
Available in 5 Days: 985 pcs. - if ordered today

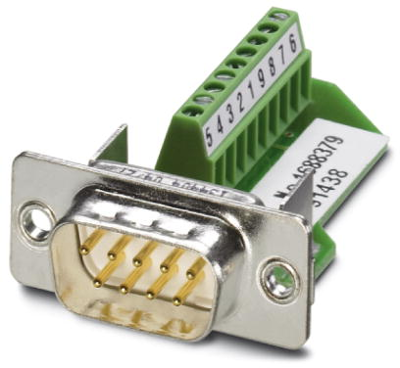

D-Sub plug, 1688379, Phoenix Contact
D-SUB contact insert, shell size 1, with 9 signal contacts, contact type pin, screw connection, straight, for mounting frame and shell housing in protection class IP67.
Features
- Housing material: Steel
- Overvoltage category: III
- Pollution degree: 2
- Flammability class according to UL 94: V0
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Pin number | 9 pole | |
| Pole image | standard | |
| Version | pin header | |
| Assembly | straight | |
| Performance level | 2 | |
| Type of locking | through hole | |
| Contact connection | screw connection |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Substance description | Lead |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
