1688201 | Phoenix Contact

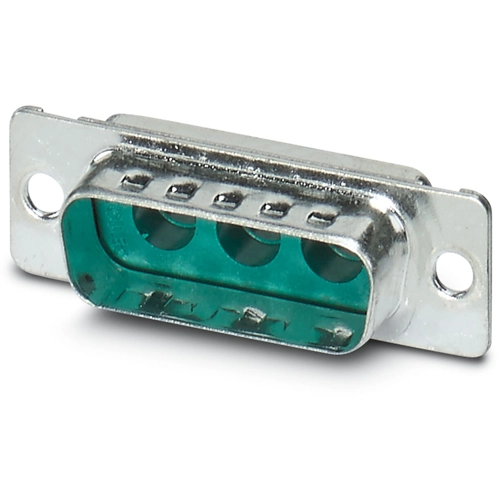

D-Sub plug, 3 pole, equipped, straight, solder pin, 1688201
Unit Price (€ / pc.)
5.5454 € *
Next delivery: 99 pcs. on 2025-12-03
Available in 5 Days: 30 pcs. - if ordered today
Total Price:
5.55 € *
Price list
Quantity
Price per unit*
1 pcs.
5.5454 €
10 pcs.
5.0932 €
50 pcs.
4.6410 €
100 pcs.
4.1650 €
*incl. VAT plus shipping costs
Subject to prior sale
D-Sub plug, 1688201, Phoenix Contact

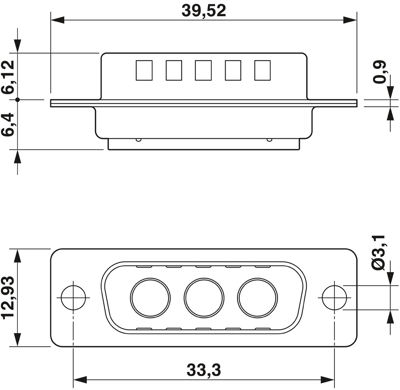

D-SUB contact carrier, shell size 2, accommodation for three combined contacts, type of contact pin, straight, fixing with a 3 mm hole, for panel mounting frame and sleeve housing VS-15.
Features
- Unshielded
- Housing material: Steel yellow chromated
- Contact material: Copper alloy
- Flammability class according to UL 94: V0
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Contact connection | solder pin | |
| Performance level | 1 | |
| Assembly | straight | |
| Additional parts | equipped | |
| Pin number | 3 pole | |
| Version | pin header | |
| Type of locking | through hole |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
