1688094 | Phoenix Contact

D-Sub socket, 15 pole, straight, screw connection, 1688094

Order No.: 62P5228
EAN: 4017918179571
MPN:
1688094
VS-15-BU-DSUB/16-MPT-0,5
Series: VS-..

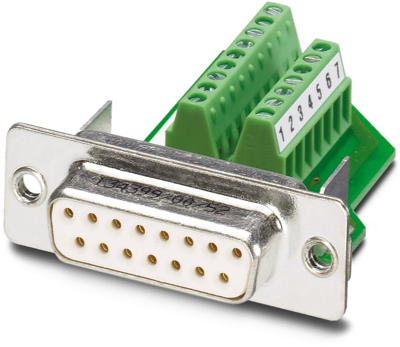

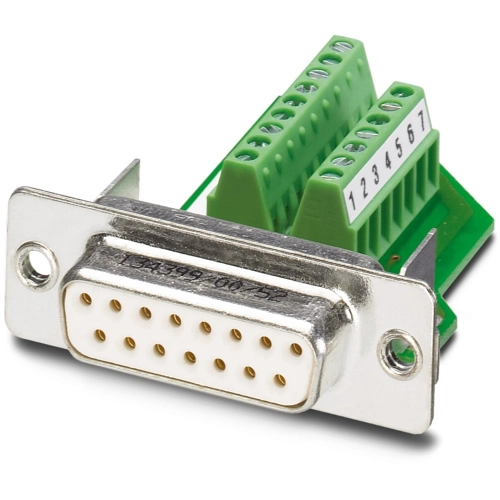

1688094 Phoenix Contact D-Sub Connectors Image 1

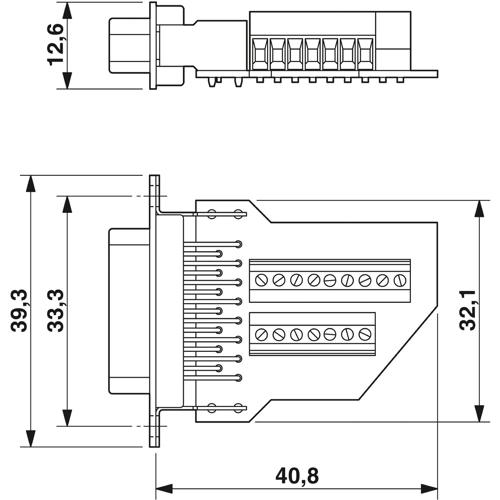

1688094 Phoenix Contact D-Sub Connectors Image 2
Image may differ
Unit Price (€ / pc.)
23.7167 € *
Available in 10 days: 251 pcs. - if ordered today
Total Price:
23.72 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
23.7167 €

D-Sub socket, 1688094, Phoenix Contact

D-SUB contact insert, shell size 2, with 15 signal contacts, female type of contact, screw connection, straight, for panel mounting frame and sleeve housing with IP67 protection.

Features

  • Shielded
  • Contact material: Copper alloy
  • Overvoltage category: III
  • Pollution degree: 2
  • Flammability class according to UL 94: V0
Technical specifications
Type of locking through hole
Assembly straight
Contact connection screw connection
Pin number 15 pole
Version socket header
Performance level 2
Logistics
Country of origin DE
Customs tariff number 85366990
Compliance
Date of RoHS guidelines 3/31/15
Substance description Lead
SVHC free No
RoHS conform Yes
