1655441 | Phoenix Contact

D-Sub plug, 5 pole, equipped, straight, solder pin, 1655441

Order No.: 62P5310
EAN: 4046356029377
MPN:
1655441
VS-25-ST-DSUB-5P-LH
Series: VS-..

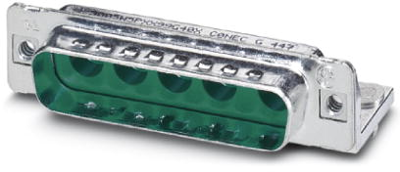

1655441 Phoenix Contact D-Sub Connectors Image 1

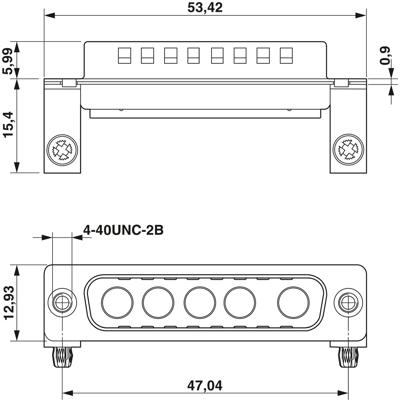

1655441 Phoenix Contact D-Sub Connectors Image 2
Image may differ
Unit Price (€ / pc.)
9.8294 € *
Available in 10 days: 100 pcs. - if ordered today
Total Price:
9.83 € *
Price list
Quantity
Price per unit*
1 pcs.
9.8294 €
10 pcs.
9.0321 €
50 pcs.
8.2348 €
100 pcs.
7.4018 €
*incl. VAT plus shipping costs
Subject to prior sale

D-Sub plug, 1655441, Phoenix Contact

D-SUB contact carrier, shell size 3, receptacle for 5 combination contacts, contact type pin, mounting by means of thread 4-40 UNC and solder pin, for mounting frame VS-25.

Features

  • Housing material: Steel yellow chromated
  • Flammability class according to UL 94: V0
Technical specifications
Performance level 1
Additional parts equipped
Contact connection solder pin
Type of locking threaded insert 4-40 UNC
Attachment (rear panel) through hole
Pin number 5 pole
Assembly straight
Version pin header
Logistics
Country of origin DE
Customs tariff number 85366990
Compliance
Date of RoHS guidelines 3/31/15
Substance description Lead
RoHS conform Yes
SVHC free No
