1655438 | Phoenix Contact

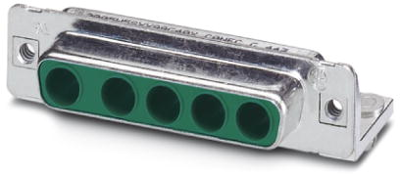

D-Sub socket, 5 pole, equipped, straight, solder pin, 1655438
Unit Price (€ / pc.)
9.9960 € *
Available in 5 Days: 30 pcs. - if ordered today
Total Price:
10.00 € *
Price list
Quantity
Price per unit*
1 pcs.
9.9960 €
10 pcs.
9.1987 €
50 pcs.
8.3657 €
100 pcs.
7.5327 €
*incl. VAT plus shipping costs
Subject to prior sale
D-Sub socket, 1655438, Phoenix Contact
D-SUB contact carrier, shell size 3, accommodation for 5 combined contacts, type of contact socket, fixing with 4-40 UNC thread and solder pins, for panel mounting frame VS-25.
Features
- Shielded
- Housing material: Steel yellow chromated
- Flammability class according to UL 94: V0
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Contact connection | solder pin | |
| Performance level | 1 | |
| Assembly | straight | |
| Attachment (rear panel) | through hole | |
| Additional parts | equipped | |
| Pin number | 5 pole | |
| Version | socket header | |
| Type of locking | threaded insert 4-40 UNC |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
