1655218 | Phoenix Contact

D-Sub plug, 44 pole, standard, equipped, angled, solder pin, 1655218

Order No.: 62P5318
EAN: 4046356029155
MPN:
1655218
VS-25-ST-DSUB-HD-ER
Series: VS-..

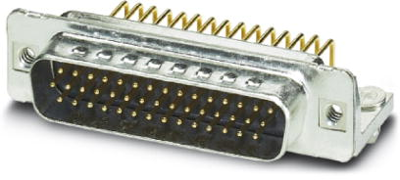

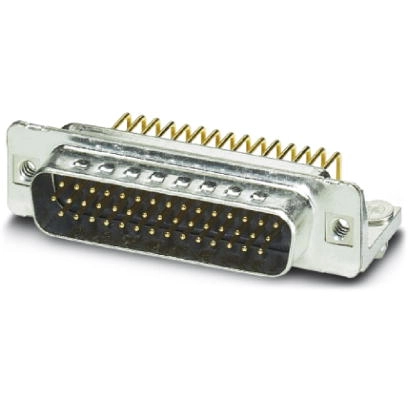

1655218 Phoenix Contact D-Sub Connectors Image 1
1655218 Phoenix Contact D-Sub Connectors Image 2
Image may differ
Unit Price (€ / pc.)
30.3331 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
30.33 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
30.3331 €

D-Sub plug, 1655218, Phoenix Contact

D-SUB contact insert, shell size 3, with 44 signal contacts, type of contact pin, for PCB assembly, angled, fixing with 4-40 UNC thread and solder pins, for panel mounting frame VS-25.

Features

  • Easy assembly
  • Overvoltage category: III
  • Pollution degree: 2
  • Contact material: Copper alloy
  • Flammability rating according to UL 94 V0
Technical specifications
Type of locking threaded insert 4-40 UNC
Pole image standard
Attachment (rear panel) through hole
Assembly angled
Contact connection solder pin
Pin number 44 pole
Version pin header
Additional parts equipped
Performance level 3
Logistics
Country of origin DE
Customs tariff number 85366990
Compliance
Date of RoHS guidelines 3/31/15
Substance description Lead
SVHC free No
RoHS conform Yes
