1655179 | Phoenix Contact
D-Sub plug, 26 pole, standard, equipped, straight, solder cup, 1655179
Unit Price (€ / pc.)
16.0174 € *
Standard delivery time from the manufacturer is: 17 Weeks
Total Price:
16.02 € *
Price list
Quantity
Price per unit*
1 pcs.
16.0174 €
10 pcs.
14.7322 €
50 pcs.
13.3994 €
100 pcs.
12.0666 €
*incl. VAT plus shipping costs
Subject to prior sale

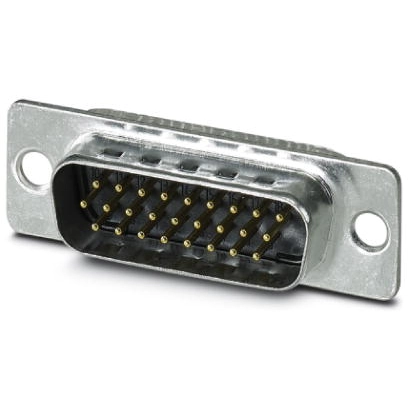

D-Sub plug, 1655179, Phoenix Contact
D-SUB contact insert, shell size 2, with 26 signal contacts, type of contact pin, with solder cup, straight, fixing with a 3 mm hole, for panel mounting frame and sleeve housing VS-15.
Features
- Unshielded
- Contact material: Copper alloy
- Overvoltage category: III
- Pollution degree: 2
- Flammability class according to UL 94: V0
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Contact connection | solder cup | |
| Performance level | 3 | |
| Pole image | standard | |
| Assembly | straight | |
| Type of locking | through hole | |
| Pin number | 26 pole | |
| Additional parts | equipped | |
| Version | pin header |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
