1655111 | Phoenix Contact

D-Sub plug, 15 pole, standard, equipped, straight, solder cup, 1655111

Order No.: 62P5219
EAN: 4046356029056
MPN:
1655111
VS-09-ST-DSUB-HD-EG
Series: VS-..

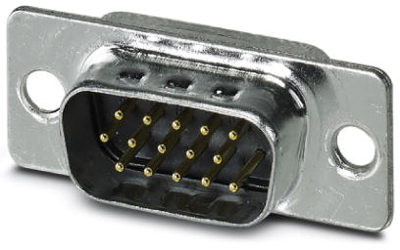

1655111 Phoenix Contact D-Sub Connectors Image 1
1655111 Phoenix Contact D-Sub Connectors Image 2
Image may differ
Unit Price (€ / pc.)
11.6620 € *
Standard delivery time from the manufacturer is: 15 Weeks
Total Price:
11.66 € *
Price list
Quantity
Price per unit*
1 pcs.
11.6620 €
10 pcs.
10.7338 €
50 pcs.
9.7699 €
100 pcs.
8.7822 €
*incl. VAT plus shipping costs
Subject to prior sale

D-Sub plug, 1655111, Phoenix Contact

D-SUB contact insert, shell size 1, with 15 signal contacts, type of contact pin, with solder cup, straight, fixing with a 3 mm hole, for panel mounting frame VS-09.

Features

  • Unshielded
  • Contact material: Copper alloy
  • Overvoltage category: III
  • Pollution degree: 2
  • Flammability class according to UL 94: V0
Technical specifications
Filter Property Value
Contact connection solder cup
Assembly straight
Additional parts equipped
Version pin header
Performance level 3
Pin number 15 pole
Type of locking through hole
Pole image standard
Logistics
Property Value
Country of origin DE
Customs tariff number 85366990
Compliance
Property Value
Substance description Lead
SVHC free No
Date of RoHS guidelines 3/31/15
RoHS conform Yes
