1654824 | Phoenix Contact
D-Sub plug, 25 pole, standard, equipped, angled, solder pin, 1654824
Unit Price (€ / pc.)
22.2768 € *
Available in 5 Days: 592 pcs. - if ordered today

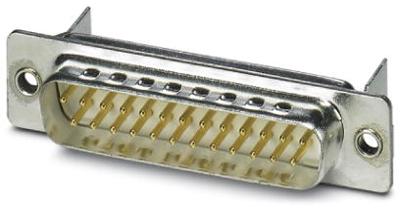

D-Sub plug, 1654824, Phoenix Contact

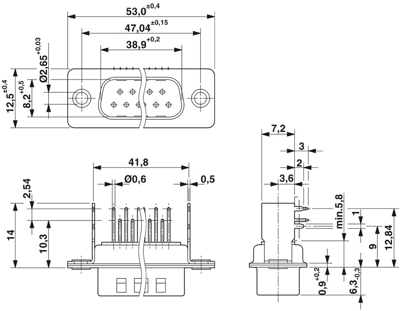

D-SUB contact insert, shell size 3, with 25 signal contacts, type of contact pin, for PCB assembly, angled, fixing with a 2.5 mm hole and solder metal plate, for panel mounting frame VS-25.
Features
- Unshielded
- Contact material: Copper alloy
- Overvoltage category: III
- Pollution degree: 2
- Flammability class according to UL 94: V0
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Pin number | 25 pole | |
| Pole image | standard | |
| Version | pin header | |
| Assembly | angled | |
| Performance level | 2 | |
| Additional parts | equipped | |
| Type of locking | through hole | |
| Contact connection | solder pin |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Substance description | Lead |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
