1654811 | Phoenix Contact

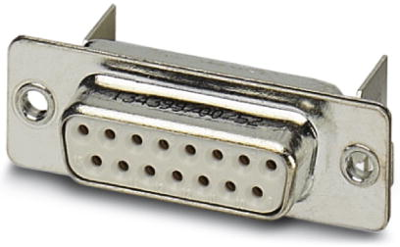

D-Sub socket, 15 pole, standard, equipped, angled, solder cup, 1654811
Unit Price (€ / pc.)
16.5053 € *
Available in 10 days: 448 pcs. - if ordered today
D-Sub socket, 1654811, Phoenix Contact
D-SUB contact insert, shell size 2, with 15 signal contacts, type of contact socket, for PCB assembly, angled, fixing with a 2.5 mm hole and solder metal plate, for panel mounting frame VS-15.
Features
- Shielded
- Contact material: Copper alloy
- Overvoltage category: III
- Pollution degree: 2
- Flammability class according to UL 94: V0
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Pin number | 15 pole | |
| Contact connection | solder cup | |
| Assembly | angled | |
| Version | socket header | |
| Performance level | 2 | |
| Pole image | standard | |
| Additional parts | equipped | |
| Type of locking | through hole |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Substance description | Lead |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
