1654785 | Phoenix Contact

D-Sub plug, 9 pole, standard, equipped, angled, solder cup, 1654785

Order No.: 62P5221
EAN: 4017918989170
MPN:
1654785
VS-09-ST-DSUB-LH-B
Series: VS-..

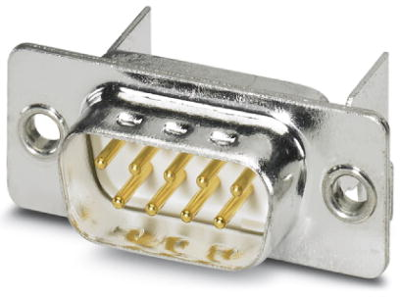

1654785 Phoenix Contact D-Sub Connectors Image 1
1654785 Phoenix Contact D-Sub Connectors Image 2
Image may differ
Unit Price (€ / pc.)
17.0527 € *
Available in 10 days: 19 pcs. - if ordered today
Total Price:
17.05 € *
Price list
Quantity
Price per unit*
1 pcs.
17.0527 €
10 pcs.
15.6961 €
50 pcs.
14.2800 €
100 pcs.
12.8520 €
*incl. VAT plus shipping costs
Subject to prior sale

D-Sub plug, 1654785, Phoenix Contact

D-SUB contact insert, shell size 1, with 9 signal contacts, type of contact pin, for PCB assembly, angled, fixing with a 2.5 mm hole and solder metal plate, for panel mounting frame VS-09.

Features

  • Unshielded
  • Contact material: Copper alloy
  • Overvoltage category: III
  • Pollution degree: 2
  • Flammability class according to UL 94: V0
Technical specifications
Pole image standard
Type of locking through hole
Pin number 9 pole
Assembly angled
Additional parts equipped
Version pin header
Performance level 2
Contact connection solder cup
Logistics
Country of origin DE
Customs tariff number 85366990
Compliance
SVHC free No
Date of RoHS guidelines 3/31/15
Substance description Lead
RoHS conform Yes
