1652240 | Phoenix Contact

D-Sub plug, 5 pole, standard, straight, screw connection, 1652240

Order No.: 62P5292
EAN: 4017918929169
MPN:
1652240
VS-25-DEVNET
Series: VS-..

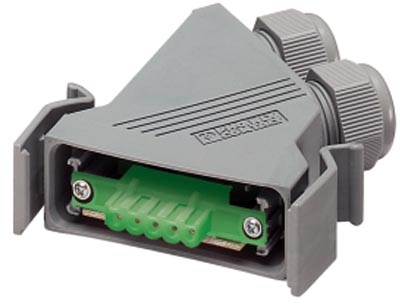

1652240 Phoenix Contact D-Sub Connectors Image 1

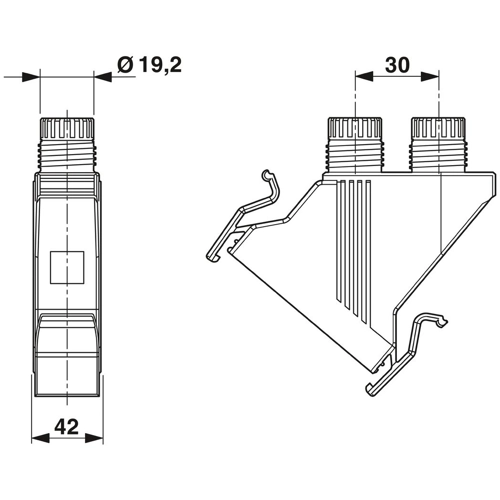

1652240 Phoenix Contact D-Sub Connectors Image 2
Image may differ
Unit Price (€ / pc.)
128.2463 € *
Available in 10 days: 31 pcs. - if ordered today
Total Price:
128.25 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
128.2463 €

D-Sub plug, 1652240, Phoenix Contact

D-SUB complete connector, for DeviceNet, shell size 3, plug, screw connection, unshielded, connection direction straight, IP67 degree of protection.

Features

  • Unshielded
  • Contact material: Copper alloy
  • Overvoltage category: III
  • Pollution degree: 2
  • Flammability class according to UL 94: V0
Technical specifications
Filter Property Value
Pin number 5 pole
Contact connection screw connection
Assembly straight
Version pin header
Pole image standard
Logistics
Property Value
Customs tariff number 85369010
Country of origin DE
Compliance
Property Value
RoHS conform Yes
Substance description Lead
SVHC free No
Date of RoHS guidelines 3/31/15
