1663611 | Phoenix Contact
Pin contact, 2.5 mm², AWG 14, crimp connection, silver-plated, 1663611
Unit Price (€ / pc.)
0.4522 € *
Available in 5 Days: 41,807 pcs. - if ordered today
Total Price:
0.45 € *
Price list
Quantity
Price per unit*
1 pcs.
0.4522 €
10 pcs.
0.4046 €
50 pcs.
0.3689 €
100 pcs.
0.3332 €
*incl. VAT plus shipping costs
Subject to prior sale

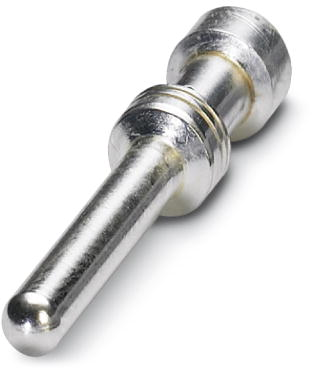

Pin contact, 1663611, Phoenix Contact
Turned 2.5 crimp contact, Individual male contact, Core diameter 2.5 mm², Silver-plated
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 14 | |
| Contact connection | crimp connection | |
| contact surface | silver-plated | |
| Version | pin contact | |
| Contact material | copper alloy | |
| Cable cross-section | 2.5 mm² | |
| Insulation diameter | 2.2-3.45 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85389099 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
