1663598 | Phoenix Contact
Pin contact, 0.75-1.0 mm², AWG 18, crimp connection, silver-plated, 1663598
Unit Price (€ / pc.)
0.4522 € *
Available in 5 Days: 15,100 pcs. - if ordered today
Total Price:
0.45 € *
Price list
Quantity
Price per unit*
1 pcs.
0.4522 €
10 pcs.
0.4046 €
50 pcs.
0.3689 €
100 pcs.
0.3332 €
*incl. VAT plus shipping costs
Subject to prior sale

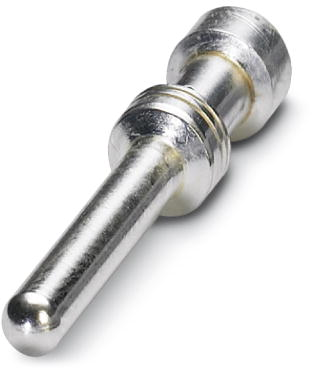

Pin contact, 1663598, Phoenix Contact
Turned 2.5 crimp contact, Individual male contact, Core diameter 0.75 to 1.00 mm², Silver-plated
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 18 | |
| Contact connection | crimp connection | |
| contact surface | silver-plated | |
| Version | pin contact | |
| Contact material | copper alloy | |
| Cable cross-section | 0.75-1.0 mm² | |
| Insulation diameter | 1.45-2.6 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85389099 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
