1663336 | Phoenix Contact
Pin contact, 0.14-0.37 mm², AWG 26-22, crimp connection, silver-plated, 1663336
Unit Price (€ / pc.)
0.9996 € *
Standard delivery time from the manufacturer is: 12 Weeks
Total Price:
1.00 € *
Price list
Quantity
Price per unit*
1 pcs.
0.9996 €
10 pcs.
0.9163 €
50 pcs.
0.8449 €
100 pcs.
0.7497 €
*incl. VAT plus shipping costs
Subject to prior sale

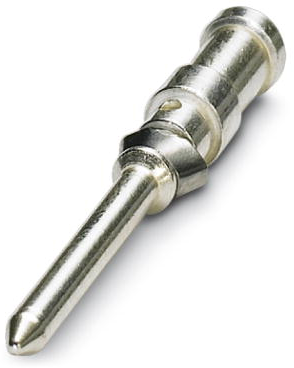

Pin contact, 1663336, Phoenix Contact
>Crimp contact, Contact diameter: 1.6 mm, Turned, Pin, Contact material: Copper alloy, Nickel-plated, Contact surface: Silver-plated, Connection cross section: 0.14 mm² - 0.37 mm², AWG 26-20
Technical specifications
| contact surface | silver-plated | |
| AWG cross-section | AWG 26-22 | |
| Contact connection | crimp connection | |
| Cable cross-section | 0.14-0.37 mm² | |
| Version | pin contact | |
| Contact material | copper alloy | |
| Insulation diameter | 1.6-2.6 mm |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| SVHC free | No |
| RoHS conform | Yes |
