1655629 | Phoenix Contact
Pin contact, 0.2 mm², AWG 24, solder connection, gold-plated, 1655629
Unit Price (€ / pc.)
11.2336 € *
Available in 5 Days: 72 pcs. - if ordered today
Total Price:
11.23 € *
Price list
Quantity
Price per unit*
1 pcs.
11.2336 €
10 pcs.
10.3292 €
50 pcs.
9.4010 €
100 pcs.
8.4609 €
*incl. VAT plus shipping costs
Subject to prior sale

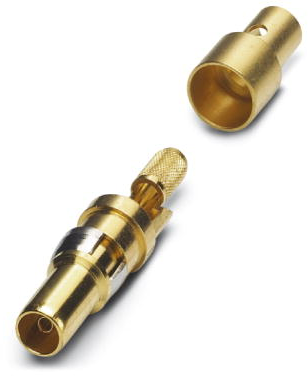

Pin contact, 1655629, Phoenix Contact
Coaxial contact, For D-SUB combination inserts, Solder cup, Pin, Straight, For cable RG 179/187, Gold-plated
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Contact connection | solder connection | |
| contact surface | gold-plated | |
| AWG cross-section | AWG 24 | |
| Contact material | copper alloy | |
| Insulation diameter | 0.5-2.3 mm | |
| Version | pin contact | |
| Cable cross-section | 0.2 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CZ |
| Customs tariff number | 85366910 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
