1623607 | Phoenix Contact
Pin contact, 0.06-0.25 mm², AWG 28-24, crimp connection, nickel-plated/gold-plated, 1623607
Unit Price (€ / pc.)
1.8326 € *
Standard delivery time from the manufacturer is: 5 Weeks
Total Price:
1.83 € *
Price list
Quantity
Price per unit*
1 pcs.
1.8326 €
10 pcs.
1.6779 €
50 pcs.
1.5351 €
100 pcs.
1.3685 €
*incl. VAT plus shipping costs
Subject to prior sale

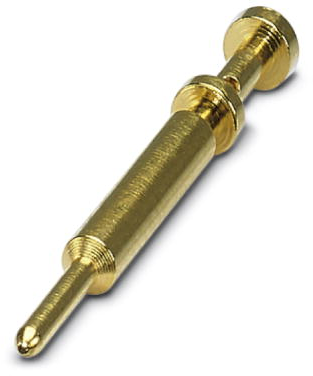

Pin contact, 1623607, Phoenix Contact
Crimp contact, Turned, Contact diameter: 1 mm, Crimp range: 0.06 mm² - 0.25 mm²
Features
- Crimping connection: vibration- and temperature-resistant assembly
- High tensile strength of the connection
- Low contact resistance
- Easy production monitoring
Technical specifications
| contact surface | nickel-plated/gold-plated | |
| AWG cross-section | AWG 28-24 | |
| Contact connection | crimp connection | |
| Cable cross-section | 0.06-0.25 mm² | |
| Version | pin contact | |
| Contact material | copper-zinc | |
| Insulation diameter | 0.75-2.55 mm |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| SVHC free | No |
| RoHS conform | Yes |
