1623605 | Phoenix Contact

Name: Receptacle, 0.5-1.0 mm², AWG 20-18, crimp connection, nickel-plated/gold-plated, 1623605
Brand: Phoenix Contact
SKU: 62P3956
Availability: InStock

Receptacle, 0.5-1.0 mm², AWG 20-18, crimp connection, nickel-plated/gold-plated, 1623605

Order No.: 62P3956

EAN: 4055626195216

MPN:

1623605

SB-10KS003

Series: SB

Image may differ

Key Specification:

Version receptacle

Cable cross-section 0.5-1.0 mm²

AWG cross-section AWG 20-18

Contact connection crimp connection

Contact material copper-zinc

Download Datasheet Technical specifications

Unit Price (€ / pc.)

2.5585 € *

Standard delivery time from the manufacturer is: 4 Weeks

Total Price:

2.56 € *

*incl. VAT plus shipping costs

Subject to prior sale

Description

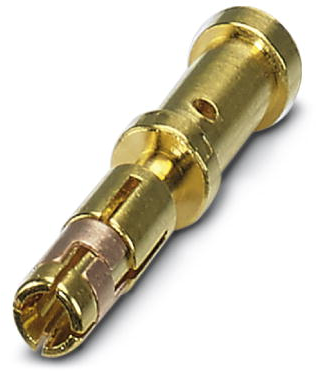

Socket contact, 1623605, Phoenix Contact

Crimp contact, Turned, Contact diameter: 1 mm, Crimp range: 0.5 mm² - 1 mm²

Features

Crimping connection: vibration- and temperature-resistant assembly
High tensile strength of the connection
Low contact resistance
Easy production monitoring

Technical specifications

Filter	Property	Value
	Version	receptacle
	contact surface	nickel-plated/gold-plated
	Contact connection	crimp connection
	Cable cross-section	0.5-1.0 mm²
	Insulation diameter	0.75-2.55 mm
	Contact material	copper-zinc
	AWG cross-section	AWG 20-18
