1607406 | Phoenix Contact
Pin contact, 0.5-1.5 mm², AWG 20-18, crimp connection, gold-plated, 1607406
Unit Price (€ / pc.)
1.8802 € *
Standard delivery time from the manufacturer is: 5 Weeks
Total Price:
1.88 € *
Price list
Quantity
Price per unit*
1 pcs.
1.8802 €
10 pcs.
1.7374 €
50 pcs.
1.5827 €
100 pcs.
1.4280 €
*incl. VAT plus shipping costs
Subject to prior sale

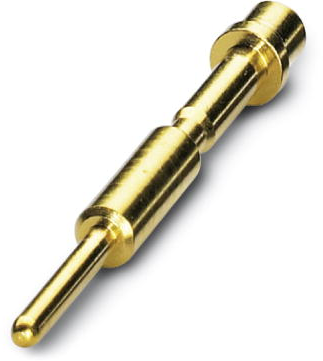

Pin contact, 1607406, Phoenix Contact
Crimp contact, Turned, Single contact, Contact diameter: 1 mm, Crimp range: 0.5 mm² - 1.5 mm²
Features
- Crimping connection: vibration- and temperature-resistant assembly
- High tensile strength of the connection
- Low contact resistance
- Easy production monitoring
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Contact material | copper zinc alloy | |
| Cable cross-section | 0.5-1.5 mm² | |
| Version | pin contact | |
| AWG cross-section | AWG 20-18 | |
| contact surface | gold-plated | |
| Contact connection | crimp connection |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85389099 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Substance description | Lead |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
