1607356 | Phoenix Contact

Name: Receptacle, 0.14-0.5 mm², AWG 26-20, crimp connection, nickel-plated/gold-plated, 1607356
Brand: Phoenix Contact
SKU: 62P4057
Availability: InStock

Receptacle, 0.14-0.5 mm², AWG 26-20, crimp connection, nickel-plated/gold-plated, 1607356

Order No.: 62P4057

EAN: 4046356174732

MPN:

1607356

SF-10KS004

Series: SF

Image may differ

Key Specification:

Version receptacle

Cable cross-section 0.14-0.5 mm²

AWG cross-section AWG 26-20

Contact connection crimp connection

Contact material copper-zinc

Download Datasheet Technical specifications

Unit Price (€ / pc.)

2.0825 € *

Available in 10 days: 3,200 pcs. - if ordered today

Total Price:

2.08 € *

*incl. VAT plus shipping costs

Subject to prior sale

Description

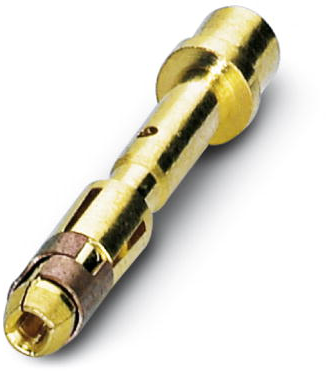

Socket contact, 1607356, Phoenix Contact

Crimp contact, Turned, Single contact, Contact diameter: 1 mm, Crimp range: 0.14 mm² - 0.5 mm²

Features

Crimping connection: vibration- and temperature-resistant assembly
High tensile strength of the connection
Low contact resistance
Easy production monitoring

Technical specifications

Filter	Property	Value
	Version	receptacle
	Insulation diameter	1.1-2.5 mm
	AWG cross-section	AWG 26-20
	Contact material	copper-zinc
	Contact connection	crimp connection
	contact surface	nickel-plated/gold-plated
	Cable cross-section	0.14-0.5 mm²
