1605760 | Phoenix Contact
Receptacle, 4.0-6.0 mm², AWG 12-10, crimp connection, nickel-plated/gold-plated, 1605760
Unit Price (€ / pc.)
5.5692 € *
Available in 10 days: 310 pcs. - if ordered today
Total Price:
5.57 € *
Price list
Quantity
Price per unit*
1 pcs.
5.5692 €
10 pcs.
5.1289 €
50 pcs.
4.6648 €
100 pcs.
4.2007 €
*incl. VAT plus shipping costs
Subject to prior sale

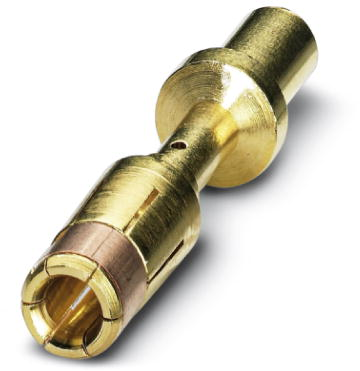

Socket contact, 1605760, Phoenix Contact
Crimp contact, Turned, Single contact, Contact diameter: 3.6 mm, Crimp range: 4 mm² - 6 mm²
Features
- Crimping connection: vibration- and temperature-resistant assembly
- High tensile strength of the connection
- Low contact resistance
- Easy production monitoring
Technical specifications
| contact surface | nickel-plated/gold-plated | |
| Contact connection | crimp connection | |
| AWG cross-section | AWG 12-10 | |
| Contact material | copper-zinc | |
| Version | receptacle | |
| Insulation diameter | 3.6-7.9 mm | |
| Cable cross-section | 4.0-6.0 mm² |
Download
Logistics
| Customs tariff number | 85389099 |
| Country of origin | DE |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| SVHC free | No |
| RoHS conform | Yes |
