1605756 | Phoenix Contact
Receptacle, 1.0-2.5 mm², AWG 18-14, crimp connection, nickel-plated/gold-plated, 1605756
Unit Price (€ / pc.)
5.2598 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
5.26 € *
Price list
Quantity
Price per unit*
1 pcs.
5.2598 €
10 pcs.
4.8433 €
50 pcs.
4.4030 €
100 pcs.
3.9627 €
*incl. VAT plus shipping costs
Subject to prior sale

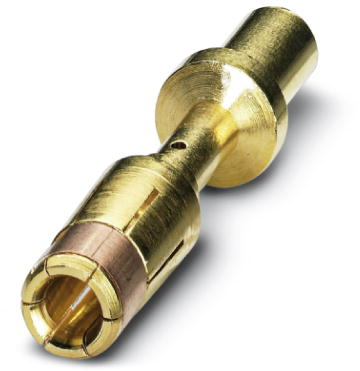

Socket contact, 1605756, Phoenix Contact
Crimp contact, Turned, Single contact, Contact diameter: 3.6 mm, Crimp range: 1 mm² - 2.5 mm²
Features
- Crimping connection: vibration- and temperature-resistant assembly
- High tensile strength of the connection
- Low contact resistance
- Easy production monitoring
Technical specifications
| contact surface | nickel-plated/gold-plated | |
| AWG cross-section | AWG 18-14 | |
| Contact connection | crimp connection | |
| Cable cross-section | 1.0-2.5 mm² | |
| Version | receptacle | |
| Contact material | copper-zinc | |
| Insulation diameter | 2.3-7.9 mm |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85389099 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| SVHC free | No |
| RoHS conform | Yes |
