1605631 | Phoenix Contact
Receptacle, 0.75-1.5 mm², AWG 18-16, crimp connection, nickel-plated/gold-plated, 1605631
Unit Price (€ / pc.)
3.0702 € *
Available: 40 pcs.
Available in 5 Days: 2,300 pcs. - if ordered today
Total Price:
3.07 € *
Price list
Quantity
Price per unit*
1 pcs.
3.0702 €
10 pcs.
2.8203 €
50 pcs.
2.5704 €
100 pcs.
2.3086 €
*incl. VAT plus shipping costs
Subject to prior sale

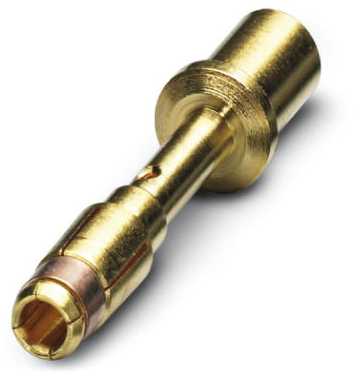

Socket contact, 1605631, Phoenix Contact
Crimp contact, Turned, Single contact, Contact diameter: 2 mm, Crimp range: 0.75 mm² - 1.5 mm²
Features
- Crimping connection: vibration- and temperature-resistant assembly
- High tensile strength of the connection
- Low contact resistance
- Easy production monitoring
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 18-16 | |
| Contact connection | crimp connection | |
| contact surface | nickel-plated/gold-plated | |
| Version | receptacle | |
| Contact material | copper-zinc | |
| Cable cross-section | 0.75-1.5 mm² | |
| Insulation diameter | 2-4.7 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85389099 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
