1605628 | Phoenix Contact
Receptacle, 4.0 mm², AWG 12, crimp connection, nickel-plated/gold-plated, 1605628
Unit Price (€ / pc.)
3.0702 € *
Available: 14 pcs.
Available in 10 days: 250 pcs. - if ordered today
Total Price:
3.07 € *
Price list
Quantity
Price per unit*
1 pcs.
3.0702 €
10 pcs.
2.8203 €
50 pcs.
2.5704 €
100 pcs.
2.3086 €
*incl. VAT plus shipping costs
Subject to prior sale

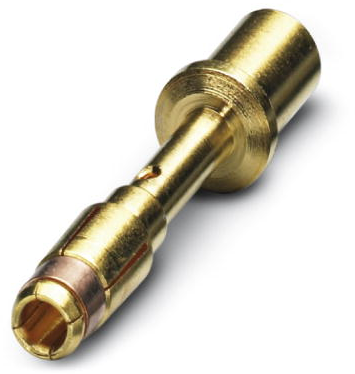

Socket contact, 1605628, Phoenix Contact
Crimp contact, Turned, Single contact, Contact diameter: 2 mm, Crimp range: 4 mm² - 4 mm²
Features
- Crimping connection: vibration- and temperature-resistant assembly
- High tensile strength of the connection
- Low contact resistance
- Easy production monitoring
Technical specifications
| Filter | Property | Value |
|---|---|---|
| contact surface | nickel-plated/gold-plated | |
| Version | receptacle | |
| Contact connection | crimp connection | |
| Insulation diameter | 2.85-5.3 mm | |
| AWG cross-section | AWG 12 | |
| Contact material | copper-zinc | |
| Cable cross-section | 4.0 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85389099 |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| Substance description | Lead |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
