1452356 | Phoenix Contact

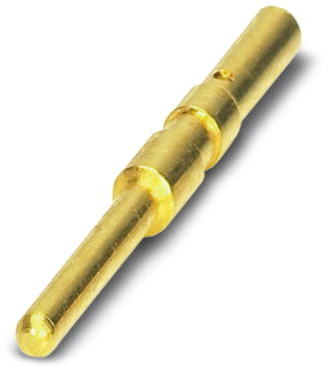

Name: Pin contact, 0.08-0.34 mm², AWG 28-22, crimp connection, gold-plated, 1452356
Brand: Phoenix Contact
SKU: 61P4467
Availability: InStock

Pin contact, 0.08-0.34 mm², AWG 28-22, crimp connection, gold-plated, 1452356

Order No.: 61P4467

EAN: 4046356544757

MPN:

1452356

CC-1,0-ST-0,34-MS AU

Series: CC

Image may differ

Key Specification:

Version pin contact

Cable cross-section 0.08-0.34 mm²

AWG cross-section AWG 28-22

Contact connection crimp connection

Contact material copper-zinc

Download Datasheet Technical specifications

Unit Price (€ / pc.)

1.2257 € *

Available in 10 days: 1,100 pcs. - if ordered today

Total Price:

1.23 € *

Price list

Quantity

Price per unit*

1 pcs.

1.2257 €

10 pcs.

1.1305 €

50 pcs.

1.0234 €

100 pcs.

0.9282 €

*incl. VAT plus shipping costs

Subject to prior sale

Description

Pin contact, 1452356, Phoenix Contact

Crimp contact, Diameter: 1 mm, For all 3 to 5-pos. Contact inserts, Crimp range from 0.08 mm² - 0.34 mm².

Technical specifications

Filter	Property	Value
	Contact connection	crimp connection
	Insulation diameter	1-1.3 mm
	Contact material	copper-zinc
	AWG cross-section	AWG 28-22
	Version	pin contact
	contact surface	gold-plated
	Cable cross-section	0.08-0.34 mm²
