1423645 | Phoenix Contact
Pin contact, 0.34-1.0 mm², AWG 22-18, crimp connection, nickel-plated/gold-plated, 1423645
Unit Price (€ / pc.)
0.9996 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
1.00 € *
Price list
Quantity
Price per unit*
1 pcs.
0.9996 €
10 pcs.
0.9282 €
50 pcs.
0.8449 €
100 pcs.
0.7497 €
*incl. VAT plus shipping costs
Subject to prior sale

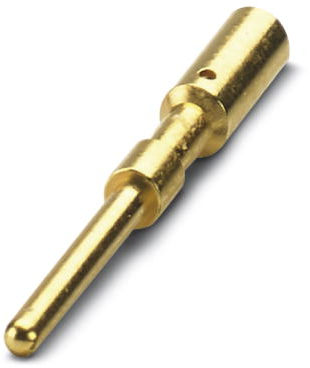

Pin contact, 1423645, Phoenix Contact
Crimp contact, Contact diameter: 1 mm, Turned, Pin, Contact material: CuZn, Contact surface: Ni/Au, Connection cross section: 0.34 mm² - 1 mm², AWG 22 - 18
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Cable cross-section | 0.34-1.0 mm² | |
| contact surface | nickel-plated/gold-plated | |
| AWG cross-section | AWG 22-18 | |
| Insulation diameter | 1-1.9 mm | |
| Contact material | copper zinc alloy | |
| Version | pin contact | |
| Contact connection | crimp connection |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
