1409082 | Phoenix Contact

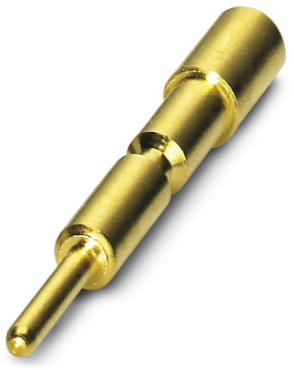

Pin contact, 0.14-1.0 mm², AWG 26-18, crimp connection, gold-plated, 1409082
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
2.0944 € *
Available in 5 Days: 300 pcs. - if ordered today
Total Price:
2.09 € *
Price list
Quantity
Price per unit*
1 pcs.
2.0944 €
10 pcs.
1.9159 €
50 pcs.
1.7493 €
100 pcs.
1.5589 €
*incl. VAT plus shipping costs
Subject to prior sale
Pin contact, 1409082, Phoenix Contact
Crimp contact, Range of articles: VARIOCON, Crimp contact, min. Conductor cross section: 0.14 mm², max. Conductor cross section: 1 mm², Connection method: Crimp connection, Type of contact: Pin. For HC-MOT-AFL-SET
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | pin contact | |
| Cable cross-section | 0.14-1.0 mm² | |
| AWG cross-section | AWG 26-18 | |
| Contact connection | crimp connection | |
| Contact material | copper-zinc | |
| contact surface | gold-plated | |
| Insulation diameter | 1-2.5 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85389099 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
