1245030 | Phoenix Contact
Pin contact, 16 mm², crimp connection, nickel-plated/gold-plated, 1245030
Unit Price (€ / pc.)
4.4030 € *
Standard delivery time from the manufacturer is: 4 Weeks

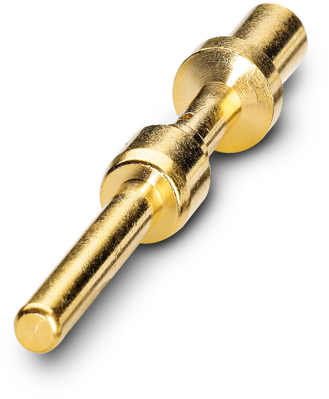

Crimp contact, 1245030, Phoenix Contact

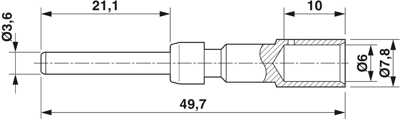

Crimp contact, pin, turned, contact diameter: 3.6 mm, crimp range: 16 mm²-16 mm². Item is lead-free in accordance with RoHS II without Exemption 6c (Pb < 0.1 %).
Features
- High tensile strength of the connection
- Low contact resistance
- Easy production monitoring
- Vibration- and temperature-resistant assembly
Technical specifications
| contact surface | nickel-plated/gold-plated | |
| Contact connection | crimp connection | |
| Cable cross-section | 16 mm² | |
| Version | pin contact | |
| Contact material | copper-zinc | |
| Insulation diameter | 6.0-7.8 mm |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| RoHS conform | Yes |
