1244920 | Phoenix Contact

Receptacle, 0.5-1.5 mm², crimp connection, nickel-plated/gold-plated, 1244920

Order No.: 64P0362
EAN: 4063151458591
MPN:
1244920
SB-10KS0,50-1,50
Series: SB
1244920 Phoenix Contact Crimp Contacts Image 1
1244920 Phoenix Contact Crimp Contacts Image 2
Image may differ
Unit Price (€ / pc.)
3.6652 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
3.67 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
3.6652 €

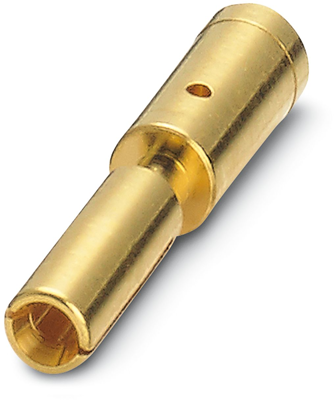

Crimp contact, 1244920, Phoenix Contact

Crimp contact, socket, turned, contact diameter: 1 mm, crimp range: 0.5 mm²-1.5 mm². Item is lead-free in accordance with RoHS II without Exemption 6c (Pb < 0.1 %).

Features

  • High tensile strength of the connection
  • Low contact resistance
  • Easy production monitoring
  • Vibration- and temperature-resistant assembly
Technical specifications
contact surface nickel-plated/gold-plated
Contact connection crimp connection
Cable cross-section 0.5-1.5 mm²
Version receptacle
Contact material copper-zinc

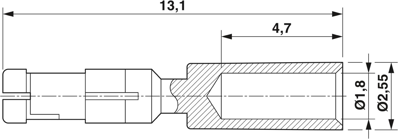

Insulation diameter 1.8-2.55 mm
Logistics
Country of origin DE
Customs tariff number 85366990
Compliance
Date of RoHS guidelines 3/31/15
SVHC free No
RoHS conform Yes
