1244896 | Phoenix Contact

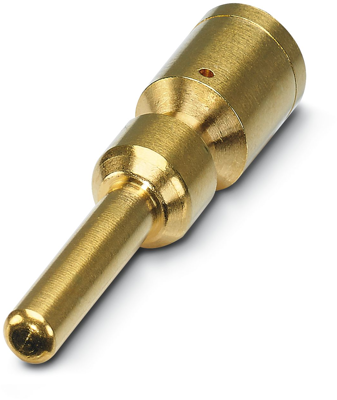

Pin contact, 16 mm², crimp connection, nickel-plated/gold-plated, 1244896

Order No.: 64P0365
EAN: 4063151447106
MPN:
1244896
SB-36KP16,00
Series: SB
1244896 Phoenix Contact Crimp Contacts
Image may differ
Unit Price (€ / pc.)
5.9262 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
5.93 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
5.9262 €

Crimp contact, 1244896, Phoenix Contact

Crimp contact, pin, turned, single contact, contact diameter: 3.6 mm, crimp range: 16 mm²-16 mm². Item is lead-free in accordance with RoHS II without Exemption 6c (Pb < 0.1 %).

Features

  • High tensile strength of the connection
  • Low contact resistance
  • Easy production monitoring
  • Vibration- and temperature-resistant assembly
Technical specifications
contact surface nickel-plated/gold-plated
Contact connection crimp connection
Cable cross-section 16 mm²
Version pin contact
Contact material copper-zinc
Logistics
Country of origin DE
Customs tariff number 85366990
Compliance
Date of RoHS guidelines 3/31/15
SVHC free No
RoHS conform Yes
