1244891 | Phoenix Contact

Receptacle, 6-10 mm², crimp connection, nickel-plated/gold-plated, 1244891

Order No.: 64P0370
EAN: 4063151448943
MPN:
1244891
SB-36KS6,00-10,00
Series: SB

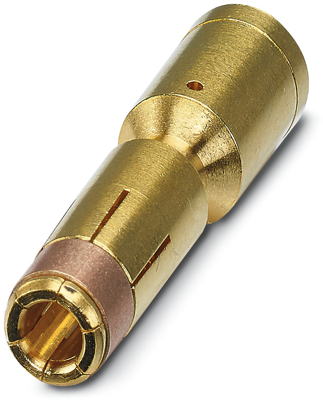

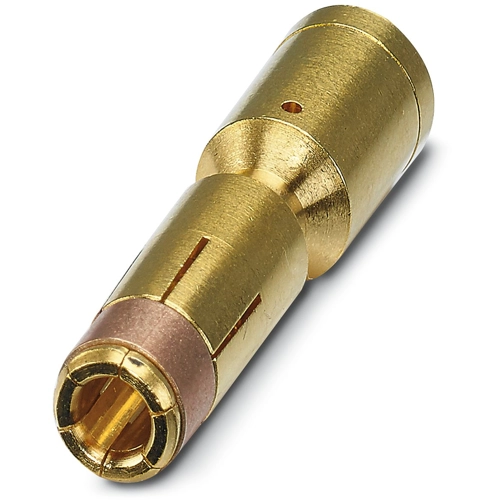

1244891 Phoenix Contact Crimp Contacts Image 1

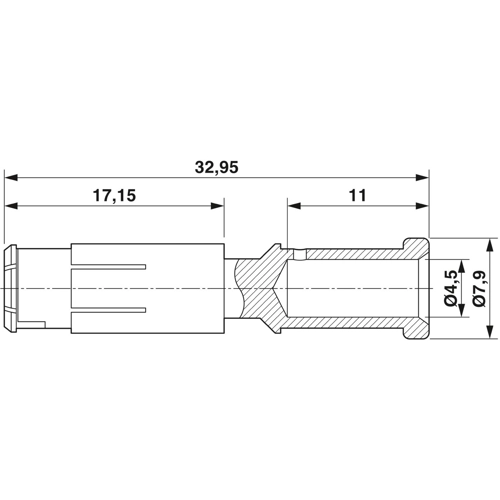

1244891 Phoenix Contact Crimp Contacts Image 2
Image may differ
Unit Price (€ / pc.)
8.6275 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
8.63 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
8.6275 €

Crimp contact, 1244891, Phoenix Contact

Crimp contact, socket, turned, contact diameter: 3.6 mm, crimp range: 6 mm²-10 mm². Item is lead-free in accordance with RoHS II without Exemption 6c (Pb < 0.1 %).

Features

  • High tensile strength of the connection
  • Low contact resistance
  • Easy production monitoring
  • Vibration- and temperature-resistant assembly
Technical specifications
contact surface nickel-plated/gold-plated
Contact connection crimp connection
Cable cross-section 6-10 mm²
Version receptacle
Contact material copper-zinc
Insulation diameter 4.5-7.9 mm
Logistics
Country of origin DE
Customs tariff number 85366990
Compliance
Date of RoHS guidelines 3/31/15
SVHC free No
RoHS conform Yes
