2967109 | Phoenix Contact
Interface relay 2 Form A (N/O), 24 V (DC), 1440 Ω, 6 A, 250 V (DC), 250 V (AC), 2967109
Unit Price (€ / pc.)
21.6342 € *
Available in 5 Days: 629 pcs. - if ordered today
Total Price:
21.63 € *
Price list
Quantity
Price per unit*
1 pcs.
21.6342 €
10 pcs.
20.1705 €
25 pcs.
18.8853 €
50 pcs.
17.7667 €
*incl. VAT plus shipping costs
Subject to prior sale

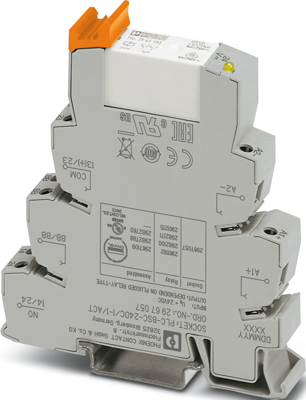

Interface relay module, 2967109, Phoenix Contact
PLC-INTERFACE for output functions, consisting of PLC-BSC/ACT basic terminal block with screw connection and plug-in miniature relay with power contact, for mounting on DIN rail NS 35/7,5, 2 N/O contacts (1-1), input voltage 24 V DC.
Features
- Actuator connected directly to relay module
- Efficient connection to system cabling using V8 adapter
- No need for additional modular terminal blocks
- Time savings of up to 60 %
- Relay modules with safe isolation according to DIN EN 50178 between coil and contact
- Space savings of up to 80 %
- Functional plug-in bridges
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Contact material | AgNi | |
| Coil resistance | 1440 Ω | |
| Coil type | monostable | |
| Degree of protection (IP) | IP20/IP54 | |
| Status display | LED, yellow | |
| Contact type | 2 Form A (N/O) | |
| Rated current | 6 A | |
| Rated voltage (AC) | 250 V | |
| Connection | screw connection | |
| Rated voltage (DC) | 250 V | |
| Coil voltage (DC) | 24 V | |
| Product type | relay coupler |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85364190 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
