2966294 | Phoenix Contact

Interface relay 1 Form C (NO/NC), 220 V (DC), 230 V (AC), 6 A, 220 V (DC), 230 V (AC), 2966294

Order No.: 30G9620
EAN: 4017918130787
MPN:
2966294
PLC-RSC-230UC/21AU
Series: PLC
2966294 Phoenix Contact Coupling Relays Image 1
2966294 Phoenix Contact Coupling Relays Image 2
Image may differ
Unit Price (€ / pc.)
27.7032 € *
Available in 10 days: 381 pcs. - if ordered today
Total Price:
27.70 € *
Price list
Quantity
Price per unit*
1 pcs.
27.7032 €
5 pcs.
26.0372 €
15 pcs.
25.0495 €
50 pcs.
23.9428 €
150 pcs.
22.9313 €
*incl. VAT plus shipping costs
Subject to prior sale

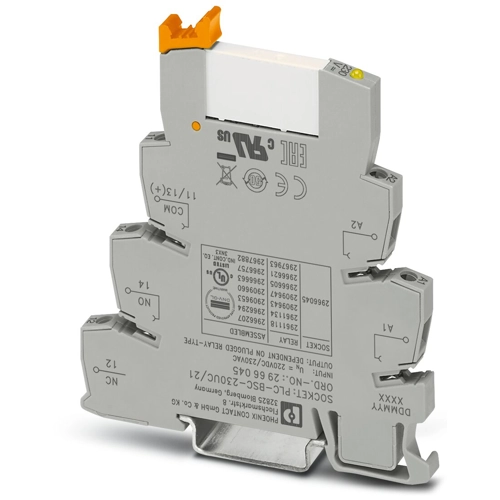

Relay module, 2966294, Phoenix Contact

Relay module, 2966294, Phoenix Contact

PLC-INTERFACE, consisting of basic terminal block PLC-BSC/21 with screw connection and plug-in miniature relay with multi-layer gold contact, for mounting on DIN rail NS 35/7.5, 1 changeover contact, Input voltage 230 VAC/220 VDC.

Features

  • Slim design
  • Efficient connection to system cabling using V8 adapter
  • Functional plug-in bridges
  • Integrated input circuit and interference suppression circuit
Technical specifications
Filter Property Value
Coil voltage (DC) 220 V
Rated current 6 A
Degree of protection (IP) IP20
Rated voltage (AC) 230 V
Coil voltage (AC) 230 V
Connection screw connection
Status display LED, yellow
Contact type 1 Form C (NO/NC)
Rated voltage (DC) 220 V
Contact material AgSnO, gold-plated
Product type interface relay
Logistics
Property Value
Country of origin DE
Customs tariff number 85364900
Compliance
Property Value
SVHC free No
Substance description Lead
RoHS conform Yes
Date of RoHS guidelines 3/31/15
